Backup and Recovery

MPCIUM provides robust backup and recovery capabilities to ensure your distributed MPC cluster data is protected against loss. The backup system uses an incremental backup strategy with encryption to efficiently store and secure your database state while minimizing resource usage.

Important: Always test your backup and recovery procedures in a non-production environment before implementing them in production.

Backup Configuration

MPCIUM supports configurable backup settings that can be adjusted in your config.yaml file:

Backup Configuration

config.yaml

# Backup Configuration
backup_enabled: true                    # Enable/disable automatic backups (default: true)
backup_period_seconds: 300              # How often to perform backups in seconds (default: 300)
backup_dir: "./backups"                 # Directory where encrypted backups are stored

Configuration Parameters

backup_enabled (boolean)

Controls whether automatic backups are performed. Set to false to disable backups entirely.

backup_period_seconds (integer)

Defines the interval between automatic backups in seconds. The default of 300 seconds (5 minutes) provides a good balance between data protection and system performance.

backup_dir (string)

Specifies the directory where encrypted backup files are stored. Ensure this directory has appropriate permissions and sufficient disk space.

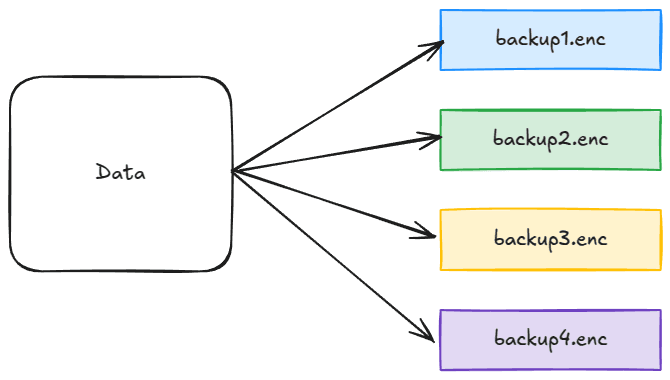

Backup Strategy

MPCIUM implements an incremental backup strategy that efficiently stores only the changes since the last backup, reducing storage requirements and backup time. This approach ensures that each backup is not a duplicate of previous backups, saving significant storage space and network bandwidth while maintaining complete data protection.

Backup File Structure

Backup files are stored in the configured backup directory with the following naming convention:

node0/
└── backups/
    ├── backup-node0-2025-07-28_20-46-39-1.enc
    ├── backup-node0-2025-07-28_20-48-39-2.enc
    ├── backup-node0-2025-07-28_20-49-39-3.enc
    └── latest.version

Backup File Format

Each backup file contains:

Incremental database changes since the last backup (not full duplicates)
Encrypted database state using AES-256-GCM encryption for security during transit and storage
Metadata including creation timestamp, encryption parameters, and version information
Chain of incremental updates that can be reconstructed to restore the complete database state

Backup Metadata Example

{
  "algo": "AES-256-GCM",
  "nonce_b64": "MgDMCSqKNujD+9na",
  "created_at": "2025-07-28T20:46:39+07:00",
  "since": 0,
  "next_since": 6,
  "encryption_key_id": "bd1937594bea2580"
}

Security: Backup files are encrypted using the same badger_password used for database encryption, ensuring your backup data remains secure during transit and storage. The incremental approach combined with encryption provides both resource efficiency and data protection.

Recovery Procedures

Using mpcium-cli recover

To recover your MPCIUM database from encrypted backup files, use the mpcium-cli recover command:

Recovery Command

mpcium-cli

mpcium-cli recover --help

NAME:
   mpcium recover - Recover database from encrypted backup files

USAGE:
   mpcium recover [command [command options]]

OPTIONS:
   --backup-dir string, -b string             Directory containing encrypted backup files
   --recovery-path string, -r string          Target path for database recovery
   --backup-encryption-key string, -k string  Encryption key for backup files (will prompt if not provided)
   --force, -f                                Force overwrite if recovery path already exists (default: false)
   --help, -h                                 show help

Recovery Process

Stop the MPCIUM node to ensure no active database operations
Run the recovery command with appropriate parameters
Update the configuration to point to the recovered database
Restart the node with the recovered data

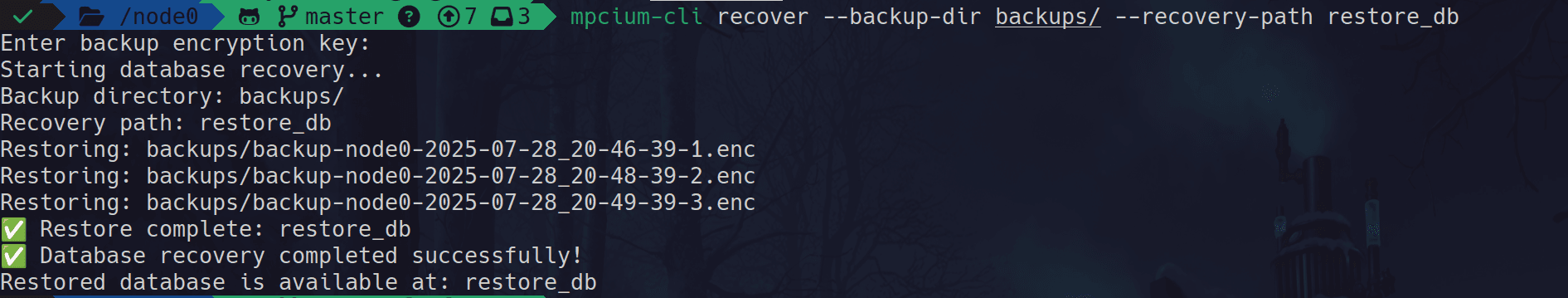

Recovery Example

bash

# Step 1: Stop the MPCIUM node

# Step 2: Recover the database
mpcium-cli recover \
  --backup-dir backups/ \
  --recovery-path restore_db/node0

# Step 3: Update config.yaml
# Change db_path to: db_path: "restore_db"

# Step 4: Restart the node

mpcium start -n node0

AWS S3 Integration

MPCIUM supports AWS S3 for cloud-based backup storage, providing additional redundancy and disaster recovery capabilities.

Setting Up S3 Backup

1. Create S3 Bucket

Create S3 Bucket

bash

aws s3 mb s3://node0-backup --region ap-southeast-1

2. Configure S3 Permissions

Ensure your AWS credentials have appropriate permissions for S3 operations:

S3 Policy Example

json

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:PutObject",
        "s3:ListBucket",
        "s3:DeleteObject"
      ],
      "Resource": [
        "arn:aws:s3:::node0-backup",
        "arn:aws:s3:::node0-backup/*"
      ]
    }
  ]
}

S3 Backup Operations

Upload Local Backups to S3

Upload to S3

bash

# Sync local backup folder to S3
aws s3 sync ./backups s3://node0-backup

Download Backups from S3

Download from S3

bash

# Sync from S3 to local folder
aws s3 sync s3://node0-backup ./backups

Verify S3 Backup

Verify S3 Contents

bash

# List S3 backup contents
aws s3 ls s3://node0-backup --recursive

# Check backup file details
aws s3api head-object --bucket node0-backup --key backup-node0-2025-07-28_20-46-39-1.enc

Former: Product Manager at TomoChain labs

Automated Backups

Cron Job Setup

Set up automated S3 backups using cron jobs to ensure regular cloud storage synchronization:

Cron Job Configuration

bash

# Edit crontab
crontab -e

# Add backup job (runs every hour)
0 * * * * /usr/local/bin/backup-mpcium.sh

# Add daily backup verification
0 2 * * * /usr/local/bin/verify-backup.sh

Backup Script Example

Create a backup script to automate the S3 sync process:

Backup Script

bash

#!/bin/bash
# /usr/local/bin/backup-mpcium.sh

# Configuration
NODE_NAME="node0"
S3_BUCKET="node0-backup"
BACKUP_DIR="/opt/mpcium/node0/backups"
LOG_FILE="/var/log/mpcium-backup.log"

# Log function
log() {
    echo "$(date '+%Y-%m-%d %H:%M:%S') - $1" >> "$LOG_FILE"
}

# Start backup
log "Starting MPCIUM backup to S3"

# Sync local backups to S3
if aws s3 sync "$BACKUP_DIR" "s3://$S3_BUCKET" --delete; then
    log "Backup completed successfully"
else
    log "Backup failed"
    exit 1
fi

# Verify backup
if aws s3 ls "s3://$S3_BUCKET" | grep -q "backup-$NODE_NAME"; then
    log "Backup verification successful"
else
    log "Backup verification failed"
    exit 1
fi

Verification Script

Create a script to verify backup integrity:

Verification Script

bash

#!/bin/bash
# /usr/local/bin/verify-backup.sh

# Configuration
S3_BUCKET="node0-backup"
LOG_FILE="/var/log/mpcium-backup-verify.log"

# Log function
log() {
    echo "$(date '+%Y-%m-%d %H:%M:%S') - $1" >> "$LOG_FILE"
}

# Check S3 bucket accessibility
if aws s3 ls "s3://$S3_BUCKET" > /dev/null 2>&1; then
    log "S3 bucket accessible"
else
    log "S3 bucket not accessible"
    exit 1
fi

# Count backup files
BACKUP_COUNT=$(aws s3 ls "s3://$S3_BUCKET" --recursive | grep -c "\.enc$")
log "Found $BACKUP_COUNT backup files in S3"

# Check for recent backups (within last 24 hours)
RECENT_BACKUPS=$(aws s3 ls "s3://$S3_BUCKET" --recursive | grep "$(date '+%Y-%m-%d')" | wc -l)
log "Found $RECENT_BACKUPS backups from today"

if [ "$RECENT_BACKUPS" -eq 0 ]; then
    log "WARNING: No recent backups found"
    exit 1
fi

Monitoring and Alerts

Set up monitoring for your backup processes:

Monitoring Setup

bash

# Check backup script exit status
if [ $? -ne 0 ]; then
    # Send alert (example with curl to webhook)
    curl -X POST -H "Content-Type: application/json" \
         -d '{"text":"MPCIUM backup failed"}' \
         https://your-webhook-url.com/alert
fi

Best Practice: Test your backup and recovery procedures regularly in a testing environment to ensure they work correctly when needed.
